Resets

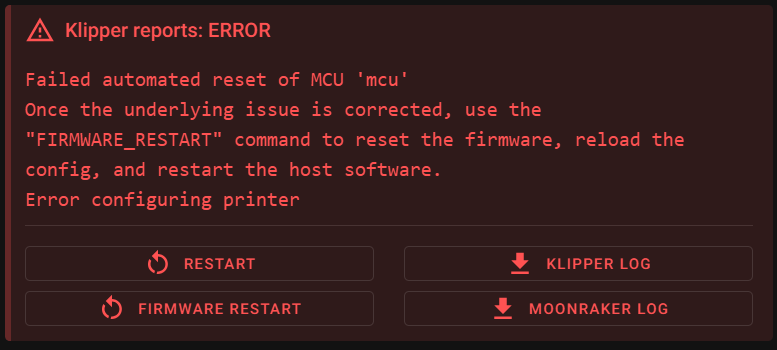

If you save and restart you will often face this message. This is because the mightyboard can not reset itself over USB. Hitting restart will usually allow you to connect. However if the printer halts due to thermal runaway, emergency shutdown, etc. You will have to manually power cycle the printer.
Sources/Credits

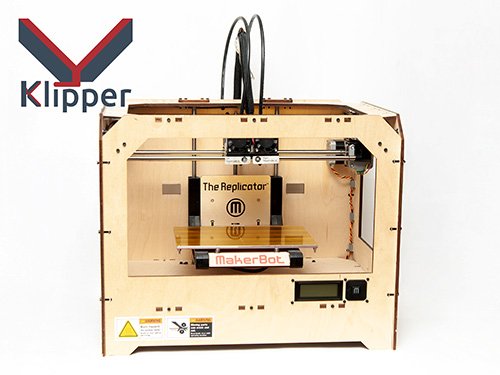

There are a couple of potential starting points for a replicator config. The Flash Forge Creator Pro has certainly received more attention and is almost the same printer. Sgail7 has tried to give the entire early replicator family support in klipper. However their config seems to have some serious issues at the time of writing such as the kinematic set to CoreXY. It still served as a template for my first pass at writing a config. https://github.com/Sgail7/Replicator-Revival-Project/tree/main/Klipper/Configs/Replicator 1 Configs
Code:
[mcu]
serial: /dev/serial/by-id/usb-MakerBot_Industries_The_Replicator_6493534313335160C052-if00
baud: 250000
############################################
[stepper_x]
step_pin: PF1
dir_pin: !PF0
enable_pin: !PF2
microsteps: 16
rotation_distance: 34
endstop_pin: ^!PL1
position_endstop: 116
position_max: 116
position_min: -116
homing_speed: 50
[stepper_y]
step_pin: PF5
dir_pin: !PF4
enable_pin: !PF6
microsteps: 16
rotation_distance: 34
endstop_pin: ^!PL3
position_endstop: 80
position_max: 80
position_min: -80
homing_speed: 50
[stepper_z]
step_pin: PK1
dir_pin: !PK0
enable_pin: !PK2
microsteps: 16
rotation_distance: 8
endstop_pin: !PL6
position_endstop: 0
position_max: 245
position_min: 0
homing_speed: 15
[extruder]
step_pin: PA3
dir_pin: !PA2
enable_pin: !PA4
microsteps: 16
rotation_distance: 33.238
nozzle_diameter: 0.400
filament_diameter: 1.750
heater_pin: PH3
sensor_type: MAX6675
sensor_pin: PE3
spi_software_miso_pin: PE5
spi_software_sclk_pin: PE2
spi_software_mosi_pin: PA1 #dummy mosi pin
#control: pid
#pid_Kp: 26.414
#pid_Ki: 1.115
#pid_Kd: 156.5054
min_temp: 0
max_temp: 260
[extruder1]
step_pin: PA7
dir_pin: PA6
enable_pin: !PG2
microsteps: 16
rotation_distance: 33
nozzle_diameter: 0.400
filament_diameter: 1.750
heater_pin: PB5
sensor_type: MAX6675
sensor_pin: PE4
spi_software_miso_pin: PE5
spi_software_sclk_pin: PE2
spi_software_mosi_pin: PA1 #dummy mosi pin
control: pid
pid_kp: 27.341
pid_ki: 1.293
pid_kd: 144.566
min_temp: 0
max_temp: 260
[heater_fan extruder_fan]
pin: PH4
heater:extruder
[heater_fan extruder1_fan]
pin: PB6
heater:extruder1
[fan]
pin: PL5
[heater_bed]
heater_pin: PL4
sensor_type: ATC Semitec 104GT-2
sensor_pin: PK7
#control: pid
#pid_Kp: 70.037
#pid_Ki: 1.710
#pid_Kd: 717.000
min_temp: 0
max_temp: 130
[printer]
kinematics: cartesian
max_velocity: 300
max_accel: 15000
max_z_velocity: 50
max_z_accel: 100
[mcp4018 x_axis_pot]
scl_pin: PJ5
sda_pin: PF3
wiper: 118
scale: 127
[mcp4018 y_axis_pot]
scl_pin: PJ5
sda_pin: PF7
wiper: 118
scale: 127
[mcp4018 z_axis_pot]
scl_pin: PJ5
sda_pin: PK3
wiper: 40
scale: 127
[mcp4018 a_axis_pot]
scl_pin: PJ5
sda_pin: PA5
wiper: 118
scale: 127
[mcp4018 b_axis_pot]
scl_pin: PJ5
sda_pin: PJ6
wiper: 118
scale: 127
[display]
lcd_type: hd44780_spi
spi_software_mosi_pin: PC3
spi_software_sclk_pin: PC2
#miso not used, dummy pin.
spi_software_miso_pin: PJ1
latch_pin: PC4
click_pin: ^PJ0
back_pin: ^PJ2
up_pin: ^PJ4
down_pin: ^PJ3
#[output_pin lcd_ledred]
#pin: PC5
#static_value: 1
#[#output_pin lcd_ledgreen]
#pin: PC6
#static_value: 1
[pca9533 led_strip]
#set_led led=led_strip red=1 green=1 blue=1
i2c_bus: twi
i2c_address: 98
initial_RED: 1
initial_GREEN: 1
initial_BLUE: 1
######################################################################
# G130: Set digital potentiometer value
######################################################################
# The macro below uses the MCP4018 SET_DIGIPOT command to implement
# a `G130` as used on classic Mightyboard-based printers such as
# The Makerbot Replicator 2/2X.
#
# The `G130` command can be used to lower the stepper current
# during preheating and raise the current again prior to starting
# the print. This is necessary for printers with smaller power
# supplies that needed all the power to heat the bed.
#
# This macro requires one or more [mcp4018] configuration sections:
# (x_axis_pot, y_axis_pot, z_axis_pot, a_axis_pot, b_axis_pot)
#
# Example: G130 X20 Y20 Z20 A20 B20 ; Lower stepper Vrefs while heating
[gcode_macro G130]
gcode:
M400
{% if ('X' in params) and ('mcp4018 x_axis_pot' in printer.configfile.config) %}
{% set x_value = params['X']|float %}
{% set x_axis_pot_scale = printer.configfile.config["mcp4018 x_axis_pot"].scale|float %}
SET_DIGIPOT DIGIPOT=x_axis_pot WIPER={ x_axis_pot_scale * (x_value / 127.0)}
{% endif %}
{% if ('Y' in params) and ('mcp4018 y_axis_pot' in printer.configfile.config) %}
{% set y_value = params['Y']|float %}
{% set y_axis_pot_scale = printer.configfile.config["mcp4018 y_axis_pot"].scale|float %}
SET_DIGIPOT DIGIPOT=y_axis_pot WIPER={ y_axis_pot_scale * (y_value / 127.0)}
{% endif %}
{% if ('Z' in params) and ('mcp4018 z_axis_pot' in printer.configfile.config) %}
{% set z_value = params['Z']|float %}
{% set z_axis_pot_scale = printer.configfile.config["mcp4018 z_axis_pot"].scale|float %}
SET_DIGIPOT DIGIPOT=z_axis_pot WIPER={ z_axis_pot_scale * (z_value / 127.0)}
{% endif %}
{% if ('A' in params) and ('mcp4018 a_axis_pot' in printer.configfile.config) %}
{% set a_value = params['A']|float %}
{% set a_axis_pot_scale = printer.configfile.config["mcp4018 a_axis_pot"].scale|float %}
SET_DIGIPOT DIGIPOT=a_axis_pot WIPER={ a_axis_pot_scale * (a_value / 127.0)}
{% endif %}
{% if ('B' in params) and ('mcp4018 b_axis_pot' in printer.configfile.config) %}
{% set b_value = params['B']|float %}
{% set b_axis_pot_scale = printer.configfile.config["mcp4018 b_axis_pot"].scale|float %}
SET_DIGIPOT DIGIPOT=b_axis_pot WIPER={ b_axis_pot_scale * (b_value / 127.0)}
{% endif %}
#*# <---------------------- SAVE_CONFIG ---------------------->
#*# DO NOT EDIT THIS BLOCK OR BELOW. The contents are auto-generated.
#*#
#*# [heater_bed]
#*# control = pid
#*# pid_kp = 63.937
#*# pid_ki = 2.880
#*# pid_kd = 354.848
#*#
#*# [extruder]
#*# control = pid
#*# pid_kp = 31.169
#*# pid_ki = 1.761
#*# pid_kd = 137.922Resets
If you save and restart you will often face this message. This is because the mightyboard can not reset itself over USB. Hitting restart will usually allow you to connect. However if the printer halts due to thermal runaway, emergency shutdown, etc. You will have to manually power cycle the printer.
